evio_output Class Reference

#include <evio_output.h>

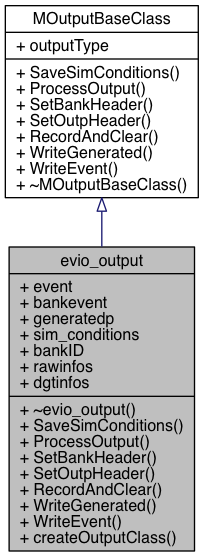

Inheritance diagram for evio_output:

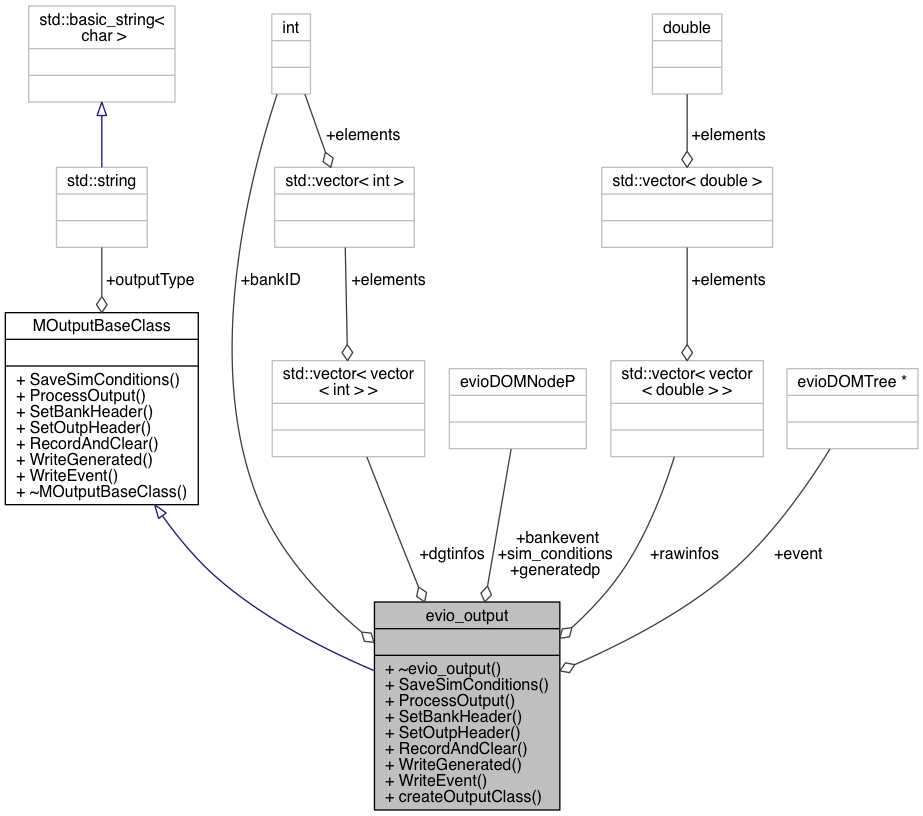

Collaboration diagram for evio_output:

Public Member Functions
	~evio_output ()
	event is deleted in WriteEvent routine More...
void	SaveSimConditions (MOutputs *, map< string, string >)
	Pure Virtual Method to save the simulation conditions on the file. More...
void	ProcessOutput (PH_output, MOutputs *, MBank)
	Pure Virtual Method to process the output. More...
void	SetBankHeader (int, string, MOutputs *)
	Pure Virtual Method to set the bank header. More...
void	SetOutpHeader (header, MOutputs *)
	Pure Virtual Method to set the output header. MOutputs needed for some output (txt) More...
void	RecordAndClear (MOutputs *, MBank)
	Pure Virtual Method to record hits in event / then clear hits objects on heap. More...
void	WriteGenerated (MOutputs *, vector< MGeneratedParticle >)
	Pure Virtual Method to write generated particles infos. More...
void	WriteEvent (MOutputs *)
	Pure Virtual Method to write event on disk. More...
Public Member Functions inherited from MOutputBaseClass
virtual	~MOutputBaseClass ()

Static Public Member Functions
static MOutputBaseClass *	createOutputClass ()

Data Fields
evioDOMTree *	event
evioDOMNodeP	bankevent
evioDOMNodeP	generatedp
evioDOMNodeP	sim_conditions
int	bankID
vector< vector< double > >	rawinfos
vector< vector< int > >	dgtinfos
Data Fields inherited from MOutputBaseClass
string	outputType

Detailed Description

Definition at line 20 of file evio_output.h.

Constructor & Destructor Documentation

evio_output::~evio_output ( )

inline

Definition at line 23 of file evio_output.h.

Member Function Documentation

static MOutputBaseClass* evio_output::createOutputClass ( )

inlinestatic

Definition at line 32 of file evio_output.h.

void evio_output::ProcessOutput ( PH_output  , MOutputs *  , MBank    )

virtual

Implements MOutputBaseClass.

Definition at line 140 of file evio_output.cc.

void evio_output::RecordAndClear ( MOutputs *  , MBank    )

virtual

Implements MOutputBaseClass.

Definition at line 8 of file evio_output.cc.

void evio_output::SaveSimConditions ( MOutputs *  , map< string, string >    )

virtual

Implements MOutputBaseClass.

Definition at line 172 of file evio_output.cc.

void evio_output::SetBankHeader ( int  , string  , MOutputs *    )

virtual

Implements MOutputBaseClass.

Definition at line 131 of file evio_output.cc.

void evio_output::SetOutpHeader ( header  , MOutputs *    )

virtual

Implements MOutputBaseClass.

Definition at line 71 of file evio_output.cc.

void evio_output::WriteEvent ( MOutputs *  )

virtual

Implements MOutputBaseClass.

Definition at line 65 of file evio_output.cc.

void evio_output::WriteGenerated ( MOutputs *  , vector< MGeneratedParticle >    )

virtual

Implements MOutputBaseClass.

Definition at line 86 of file evio_output.cc.

Field Documentation

evioDOMNodeP evio_output::bankevent

Definition at line 35 of file evio_output.h.

int evio_output::bankID

Definition at line 38 of file evio_output.h.

vector<vector<int> > evio_output::dgtinfos

Definition at line 40 of file evio_output.h.

evioDOMTree* evio_output::event

Definition at line 34 of file evio_output.h.

evioDOMNodeP evio_output::generatedp

Definition at line 36 of file evio_output.h.

vector<vector<double> > evio_output::rawinfos

Definition at line 39 of file evio_output.h.

evioDOMNodeP evio_output::sim_conditions

Definition at line 37 of file evio_output.h.
