MOutputBaseClass Class Reference

#include <MOutputBaseClass.h>

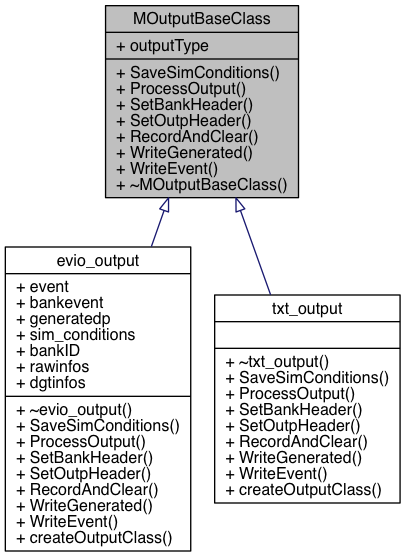

Inheritance diagram for MOutputBaseClass:

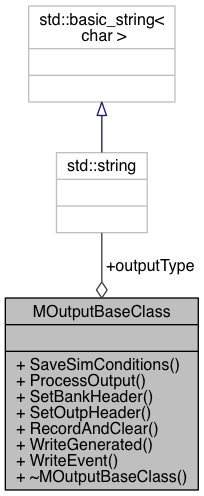

Collaboration diagram for MOutputBaseClass:

Public Member Functions
virtual void	SaveSimConditions (MOutputs *, map< string, string >)=0
	Pure Virtual Method to save the simulation conditions on the file. More...
virtual void	ProcessOutput (PH_output, MOutputs *, MBank)=0
	Pure Virtual Method to process the output. More...
virtual void	SetBankHeader (int, string, MOutputs *)=0
	Pure Virtual Method to set the bank header. More...
virtual void	SetOutpHeader (header, MOutputs *)=0
	Pure Virtual Method to set the output header. MOutputs needed for some output (txt) More...
virtual void	RecordAndClear (MOutputs *, MBank)=0
	Pure Virtual Method to record hits in event / then clear hits objects on heap. More...
virtual void	WriteGenerated (MOutputs *, vector< MGeneratedParticle >)=0
	Pure Virtual Method to write generated particles infos. More...
virtual void	WriteEvent (MOutputs *)=0
	Pure Virtual Method to write event on disk. More...
virtual	~MOutputBaseClass ()

Data Fields
string	outputType

Detailed Description

MOutputBaseClass

This class is istantiated by the factory method MOutput_Factory.
MOutput_Factory is registered in a map<string, MOutput_Factory>, with key defined at command line (default: "txt").
The virtual method ProcessOutput is called at the end of each event.

Definition at line 82 of file MOutputBaseClass.h.

Constructor & Destructor Documentation

virtual MOutputBaseClass::~MOutputBaseClass ( )

inlinevirtual

Definition at line 94 of file MOutputBaseClass.h.

Member Function Documentation

virtual void MOutputBaseClass::ProcessOutput ( PH_output  , MOutputs *  , MBank    )

pure virtual

Implemented in evio_output, and txt_output.

virtual void MOutputBaseClass::RecordAndClear ( MOutputs *  , MBank    )

pure virtual

Implemented in evio_output, and txt_output.

virtual void MOutputBaseClass::SaveSimConditions ( MOutputs *  , map< string, string >    )

pure virtual

Implemented in evio_output, and txt_output.

virtual void MOutputBaseClass::SetBankHeader ( int  , string  , MOutputs *    )

pure virtual

Implemented in evio_output, and txt_output.

virtual void MOutputBaseClass::SetOutpHeader ( header  , MOutputs *    )

pure virtual

Implemented in evio_output, and txt_output.

virtual void MOutputBaseClass::WriteEvent ( MOutputs *  )

pure virtual

Implemented in evio_output, and txt_output.

virtual void MOutputBaseClass::WriteGenerated ( MOutputs *  , vector< MGeneratedParticle >    )

pure virtual

Implemented in evio_output, and txt_output.

Field Documentation

string MOutputBaseClass::outputType

Definition at line 92 of file MOutputBaseClass.h.
