GEMC
2.3
Geant4 Monte-Carlo Framework
|
#include <MEventAction.h>

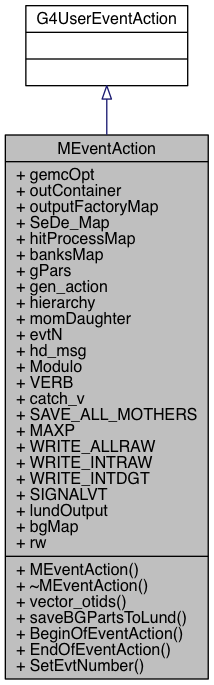

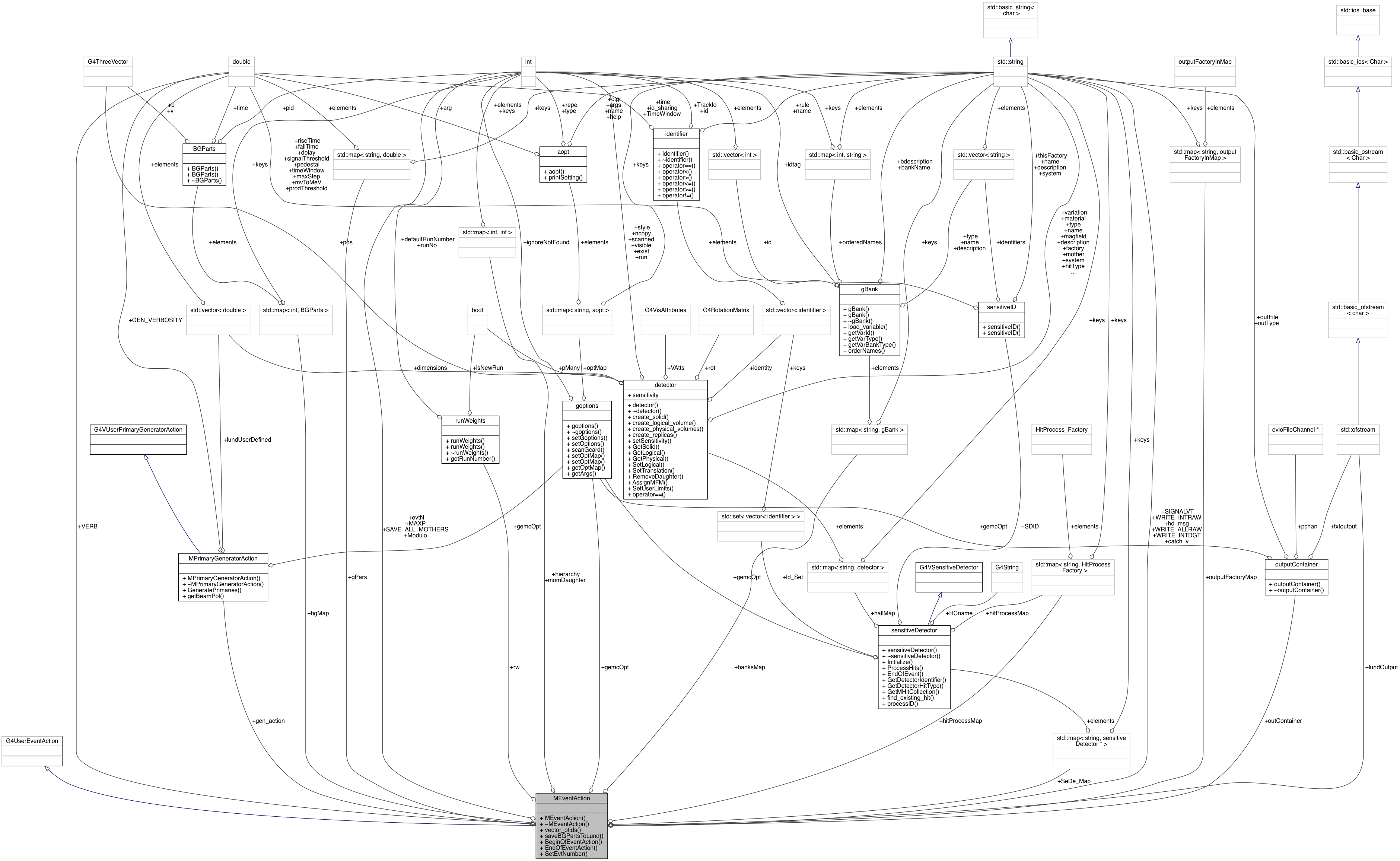

Inheritance diagram for MEventAction: Collaboration diagram for MEventAction:Public Member Functions | |
| MEventAction (goptions, map< string, double >) | |
| Constructor copies gemc options. More... | |
| ~MEventAction () | |
| Destructor. More... | |
| vector< int > | vector_otids (vector< int > tids) |
| return original track id of a vector of tid More... | |
| void | saveBGPartsToLund () |
| void | BeginOfEventAction (const G4Event *) |
| Routine at the start of each event. More... | |
| void | EndOfEventAction (const G4Event *) |
| Routine at the end of each event. More... | |
| void | SetEvtNumber (int N) |
| Sets Event Number. More... | |
Data Fields | |
| goptions | gemcOpt |
| gemc options More... | |
| outputContainer * | outContainer |
| outputContainer class - contains the output format. More... | |
| map< string, outputFactoryInMap > * | outputFactoryMap |
| outputFactory map More... | |
| map< string, sensitiveDetector * > | SeDe_Map |
| Sensitive detector Map. More... | |
| map< string, HitProcess_Factory > * | hitProcessMap |
| Hit Process Routine Factory Map. More... | |
| map< string, gBank > * | banksMap |
| Bank Map. More... | |
| map< string, double > | gPars |
| Parameters Map. More... | |
| MPrimaryGeneratorAction * | gen_action |
| Generator Action. More... | |
| map< int, int > | hierarchy |
| Hierarchy map. More... | |
| map< int, int > | momDaughter |
| mom - daughter relationship More... | |
| int | evtN |
| Event Number. More... | |
| string | hd_msg |
| Event Action Message. More... | |
| int | Modulo |
| Print Log Event every Modulo. More... | |
| double | VERB |
| Event Verbosity. More... | |
| string | catch_v |
| Print Log for volume. More... | |
| int | SAVE_ALL_MOTHERS |
| >= 1: Loops over the stored trajectories to store mother vertex and pid in the output. >=2: Also saves all particles that produced a hit onto LUND format More... | |
| int | MAXP |
| Max number of generated particles to save on output stream. More... | |
| string | WRITE_ALLRAW |
| List of detectors for which geant4 all raw info need to be saved. More... | |
| string | WRITE_INTRAW |
| List of detectors for which geant4 raw integrated info need to be saved. More... | |
| string | WRITE_INTDGT |
| List of detectors for which digitized integrated info need to be NOT saved. More... | |
| string | SIGNALVT |
| List of detectors for which voltage versus time need to be saved. More... | |
| ofstream * | lundOutput |
| map< int, BGParts > | bgMap |
| runWeights | rw |
MEventAction
Derived from G4UserEventAction.
The two functions:
Definition at line 106 of file MEventAction.h.
| MEventAction::MEventAction | ( | goptions | opts, |
| map< string, double > | gpars | ||
| ) |
Definition at line 79 of file MEventAction.cc.
| MEventAction::~MEventAction | ( | ) |
Definition at line 105 of file MEventAction.cc.
| void MEventAction::BeginOfEventAction | ( | const G4Event * | evt | ) |
Definition at line 111 of file MEventAction.cc.
| void MEventAction::EndOfEventAction | ( | const G4Event * | evt | ) |
Definition at line 126 of file MEventAction.cc.
| void MEventAction::saveBGPartsToLund | ( | ) |
Definition at line 573 of file MEventAction.cc.
|
inline |
Definition at line 147 of file MEventAction.h.
| vector< int > MEventAction::vector_otids | ( | vector< int > | tids | ) |
Definition at line 19 of file MEventAction.cc.
| map<string, gBank>* MEventAction::banksMap |
Definition at line 118 of file MEventAction.h.
| map<int, BGParts> MEventAction::bgMap |
Definition at line 142 of file MEventAction.h.
| string MEventAction::catch_v |
Definition at line 131 of file MEventAction.h.
| int MEventAction::evtN |
Definition at line 127 of file MEventAction.h.
| goptions MEventAction::gemcOpt |
Definition at line 112 of file MEventAction.h.
| MPrimaryGeneratorAction* MEventAction::gen_action |
Definition at line 120 of file MEventAction.h.
| map<string, double> MEventAction::gPars |
Definition at line 119 of file MEventAction.h.
| string MEventAction::hd_msg |
Definition at line 128 of file MEventAction.h.
| map<int, int> MEventAction::hierarchy |
Definition at line 122 of file MEventAction.h.
| map<string, HitProcess_Factory>* MEventAction::hitProcessMap |
Definition at line 117 of file MEventAction.h.
| ofstream* MEventAction::lundOutput |
Definition at line 141 of file MEventAction.h.
| int MEventAction::MAXP |
Definition at line 133 of file MEventAction.h.
| int MEventAction::Modulo |
Definition at line 129 of file MEventAction.h.
| map<int, int> MEventAction::momDaughter |
Definition at line 123 of file MEventAction.h.
| outputContainer* MEventAction::outContainer |
Definition at line 114 of file MEventAction.h.
| map<string, outputFactoryInMap>* MEventAction::outputFactoryMap |
Definition at line 115 of file MEventAction.h.
| runWeights MEventAction::rw |
Definition at line 149 of file MEventAction.h.
| int MEventAction::SAVE_ALL_MOTHERS |
Definition at line 132 of file MEventAction.h.
| map<string, sensitiveDetector*> MEventAction::SeDe_Map |
Definition at line 116 of file MEventAction.h.
| string MEventAction::SIGNALVT |
Definition at line 137 of file MEventAction.h.
| double MEventAction::VERB |
Definition at line 130 of file MEventAction.h.
| string MEventAction::WRITE_ALLRAW |
Definition at line 134 of file MEventAction.h.
| string MEventAction::WRITE_INTDGT |
Definition at line 136 of file MEventAction.h.
| string MEventAction::WRITE_INTRAW |
Definition at line 135 of file MEventAction.h.
