HitProcess Class Reference

#include <HitProcess.h>

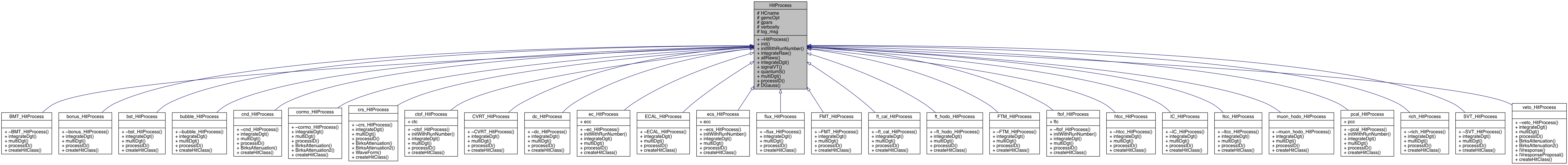

Inheritance diagram for HitProcess:

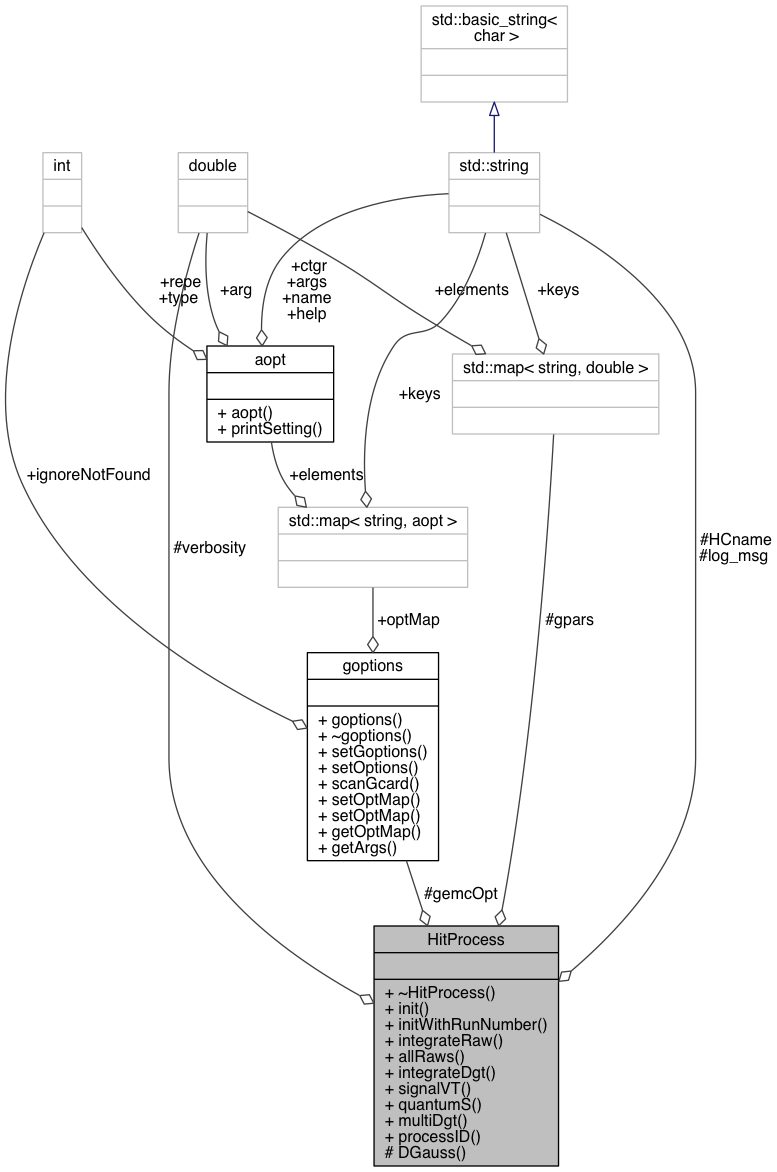

Collaboration diagram for HitProcess:

Public Member Functions
virtual	~HitProcess ()
void	init (string name, goptions go, map< string, double > gp)
virtual void	initWithRunNumber (int runno)
map< string, double >	integrateRaw (MHit *, int, bool)
map< string, vector< double > >	allRaws (MHit *, int)
virtual map< string, double >	integrateDgt (MHit *, int)=0
virtual map< double, double >	signalVT (MHit *)
virtual map< int, int >	quantumS (map< double, double >, MHit *)
virtual map< string, vector< int > >	multiDgt (MHit *, int)=0
virtual vector< identifier >	processID (vector< identifier >, G4Step *, detector)=0

Protected Member Functions
double	DGauss (double x, double *par, double Edep, double stepTime)

Protected Attributes
string	HCname
goptions	gemcOpt
map< string, double >	gpars
double	verbosity
string	log_msg

Detailed Description

HitProcess

This HitProcess is istantiated by the factory method HitProcess_Factory.
HitProcess is registered in a map<string, HitProcess>, with key referred by the detector hitType.
There are two methods that returns geant4 raw information / step, and integrated over all steps:

• integrateRaw: returns geant4 raw information integrated over the hit
• allRaws: returns all geant4 raw information step by step

  There are three pure virtual methods to treat the hit:
• integrateDgt: returns digitized information integrated over the hit
• signalVT: returns a V(t) function
• multiDgt: returns multiple digitized information / hit

The pure virtual method processID returns a (new) identifier containing hit sharing information

Definition at line 64 of file HitProcess.h.

Constructor & Destructor Documentation

virtual HitProcess::~HitProcess ( )

inlinevirtual

Definition at line 67 of file HitProcess.h.

Member Function Documentation

map< string, vector< double > > HitProcess::allRaws	(	MHit *	aHit,
		int	hitn
	)

Definition at line 75 of file HitProcess.cc.

double HitProcess::DGauss ( double  x, double *  par, double  Edep, double  stepTime  )

inlineprotected

Definition at line 123 of file HitProcess.h.

void HitProcess::init ( string  name, goptions  go, map< string, double >  gp  )

inline

Definition at line 68 of file HitProcess.h.

virtual void HitProcess::initWithRunNumber ( int  runno )

inlinevirtual

Reimplemented in ftof_HitProcess, ctof_HitProcess, ec_HitProcess, pcal_HitProcess, and ecs_HitProcess.

Definition at line 88 of file HitProcess.h.

virtual map<string, double> HitProcess::integrateDgt ( MHit *  , int    )

pure virtual

Implemented in ftof_HitProcess, ctof_HitProcess, BMT_HitProcess, ec_HitProcess, dc_HitProcess, pcal_HitProcess, FMT_HitProcess, FTM_HitProcess, ecs_HitProcess, bst_HitProcess, bonus_HitProcess, bubble_HitProcess, ft_cal_HitProcess, htcc_HitProcess, IC_HitProcess, ltcc_HitProcess, flux_HitProcess, CVRT_HitProcess, ECAL_HitProcess, cormo_HitProcess, crs_HitProcess, veto_HitProcess, cnd_HitProcess, ft_hodo_HitProcess, rich_HitProcess, muon_hodo_HitProcess, and SVT_HitProcess.

map< string, double > HitProcess::integrateRaw	(	MHit *	aHit,
		int	hitn,
		bool	WRITEBANK
	)

Definition at line 35 of file HitProcess.cc.

virtual map< string, vector <int> > HitProcess::multiDgt ( MHit *  , int    )

pure virtual

Implemented in ftof_HitProcess, ctof_HitProcess, BMT_HitProcess, ec_HitProcess, dc_HitProcess, pcal_HitProcess, FMT_HitProcess, FTM_HitProcess, ecs_HitProcess, bst_HitProcess, bonus_HitProcess, bubble_HitProcess, ft_cal_HitProcess, htcc_HitProcess, IC_HitProcess, ltcc_HitProcess, flux_HitProcess, CVRT_HitProcess, ECAL_HitProcess, cormo_HitProcess, crs_HitProcess, veto_HitProcess, cnd_HitProcess, ft_hodo_HitProcess, rich_HitProcess, muon_hodo_HitProcess, and SVT_HitProcess.

virtual vector<identifier> HitProcess::processID ( vector< identifier >  , G4Step *  , detector    )

pure virtual

Implemented in ftof_HitProcess, ctof_HitProcess, BMT_HitProcess, ec_HitProcess, dc_HitProcess, pcal_HitProcess, FMT_HitProcess, FTM_HitProcess, ecs_HitProcess, bst_HitProcess, bonus_HitProcess, bubble_HitProcess, ft_cal_HitProcess, htcc_HitProcess, IC_HitProcess, ltcc_HitProcess, flux_HitProcess, CVRT_HitProcess, ECAL_HitProcess, cormo_HitProcess, crs_HitProcess, veto_HitProcess, cnd_HitProcess, ft_hodo_HitProcess, rich_HitProcess, muon_hodo_HitProcess, and SVT_HitProcess.

map< int, int > HitProcess::quantumS ( map< double, double >  vts, MHit *  aHit  )

virtual

Definition at line 244 of file HitProcess.cc.

map< double, double > HitProcess::signalVT ( MHit *  aHit )

virtual

Definition at line 171 of file HitProcess.cc.

Field Documentation

goptions HitProcess::gemcOpt

protected

Definition at line 118 of file HitProcess.h.

map<string, double> HitProcess::gpars

protected

Definition at line 119 of file HitProcess.h.

string HitProcess::HCname

protected

Definition at line 117 of file HitProcess.h.

string HitProcess::log_msg

protected

Definition at line 121 of file HitProcess.h.

double HitProcess::verbosity

protected

Definition at line 120 of file HitProcess.h.
